Why Is My Embroidery Thread Fraying? A Forensic Autopsy of Machine Friction & Cap Anatomy

There is a specific, sinking sound every embroidery technician knows by heart: the rhythmic hum of an industrial head suddenly interrupted by a dull fluttering noise, followed by the machine abruptly stalling with a "Thread Break" warning.

You pull back the presser foot and see the damage: the thread hasn't cleanly snapped. It has shredded into a bird's nest of fuzzy filaments, choking the needle eye and leaving jagged, unraveled loops across the cap crown.

For creators operating their own machines, thread shredding is the ultimate productivity killer. For cap enthusiasts, seeing fuzzy fibers sprout from an embroidered logo after three weeks of wear is the hallmark of low-tier craftsmanship.

Understanding why embroidery thread is fraying requires abandoning superstition. Thread does not shred due to "bad luck." It frays because microscopic physical friction is stripping the filament sheath faster than the needle can bury it into the fabric.

Here is our studio's forensic inspection guide to diagnosing where friction is attacking your thread, why curved 6-panel caps amplify shredding, and how to eliminate fraying permanently.

THE HIGH-SPEED ABRASION CYCLE (At 800 Stitches Per Minute)
=============================================================================
Spool Cone ──► Tension Discs ──► Check Spring ──► Needle Eye ──► Cap Twill
                                                      ▲
                                            [THE FRICTION ZONE]
                               A single section of thread passes back
                               and forth through the needle eye up to
                               15-20 times before locking into the bobbin.
=============================================================================

The Forensic Map: The 4 Primary Friction Culprits

To understand fraying, you must visualize what happens inside the needle eye. The thread does not simply dart straight through into the cotton twill. Because of the machine's oscillating stroke, a single segment of thread passes through the tiny eyelet 15 to 25 times under immense mechanical tension before finally being anchored by the rotary bobbin hook below.

If there is even a sub-millimeter flaw anywhere along that path, that repeated cycling acts like running a silk cord across a serrated steak knife.

Culprit 1: The Burred Needle Eye (The Microscopic Razor)

The most common cause of shredded thread on custom caps is a micro-burr inside the needle eye or along the needle scarf.

• How It Happens: Cap needles are routinely driven through rugged materials: heavy washed twill, rigid internal buckram, and thick center seams. If a needle deflects even 0.2mm off course and brushes against the metal throat plate or rotary hook, the impact shears a microscopic burr onto the steel needle eye.

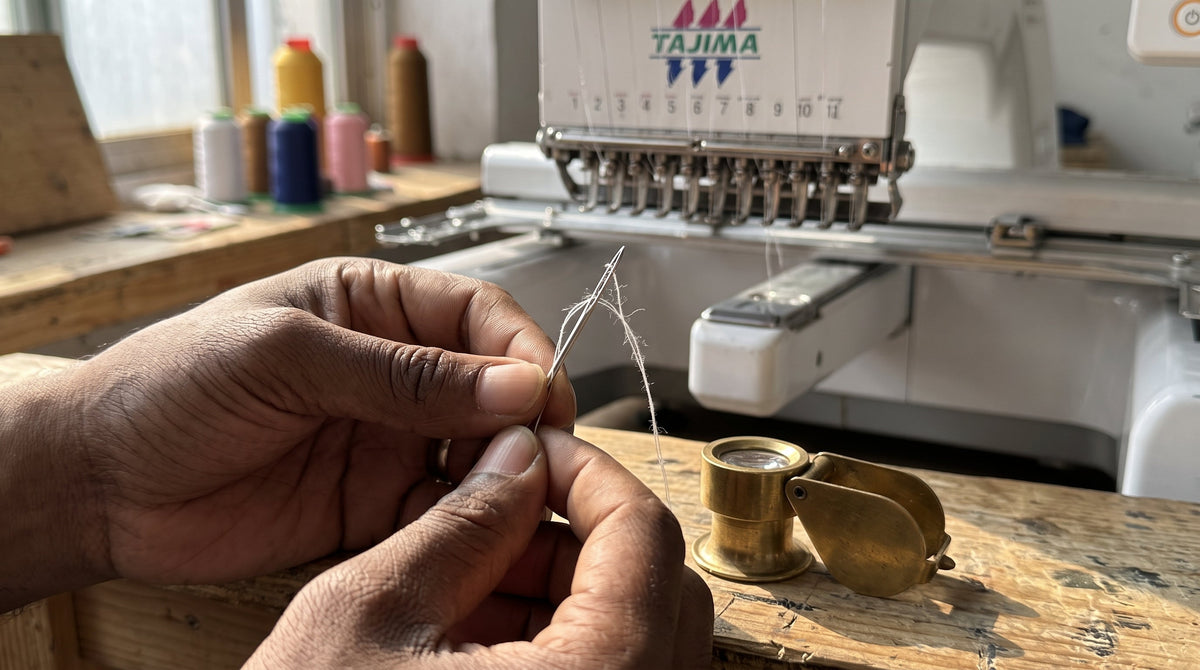

• The Forensic Test: You cannot see a micro-burr with the naked eye. In our studio, we perform the Nylon Stocking Test: take the needle out, thread a fine strand of women’s nylon pantyhose or a loose piece of silk through the eye, and saw it gently back and forth at an angle. If the fabric catches or snags even slightly, the needle eye has a razor-sharp burr.

• The Fix: Throw the needle directly into the scrap bin. Never attempt to polish an industrial cap needle; replace it with a fresh chrome or titanium-coated needle.

Culprit 2: The Needle-to-Thread Gauge Mismatch

Thread needs breathing room to slide smoothly through the eyelet without compression friction.

WRONG: Thread Choked in Small Eye           CORRECT: The 40% Clearance Rule
=================================           ===============================
          ╭─────────╮                                 ╭─────────╮
          │  THREAD │ (Pinched edges                  │  THREAD │
          │  CHOKED │  peel outward)                  │  FITS   │ (40% free space)
          ╰─────────╯                                 ╰─────────╯

• The Mechanical Bottleneck: Standard cap embroidery relies on 40-weight thread. If an operator runs a delicate Size 65/9 or 70/10 needle designed for fine silk shirts, the 40-weight thread fills more than 80% of the eye hole. As the thread oscillates at high speed, the friction strips away the outer polymer sheath, resulting in "fuzzing" and terminal breakage.

• The Studio Standard: Pair 40-weight trilobal polyester with an 80/12 Sharp or Light Ballpoint needle for structured caps, or a 75/11 needle for soft, unstructured washed twill. The thread should occupy roughly 50% to 60% of the internal eyelet space, leaving plenty of clearance for frictionless travel.

Culprit 3: The Center Seam Friction Spike

Unlike flat hoodies or tote bags, a 6-panel baseball cap features a thick, structural center seam running directly through the embroidery field.

• The Thermal & Mechanical Hazard: That center seam contains six layers of tightly folded twill, heavy interlining tape, and dense construction stitching. When the embroidery needle punches into that ridge at 850 RPM, friction generates instant heat—reaching temperatures up to 180°C to 200°C (356°F - 392°F) on the needle blade.

• The Consequence: Synthetic polyester softens at 220°C and melts at 250°C. If needle temperatures spike over dense seams, the heat structurally softens the thread filaments, causing them to shred and snap under tension.

• The Studio Protocol:

  1. Program a digital Speed Drop: Slow the machine down from 850 RPM to 600–650 RPM when traversing within 5mm of the center crown seam.

  2. Use Titanium-Nitride Coated Needles (gold-colored needles), which dissipate heat twice as fast as standard chrome steel and resist adhesive buildup.

Culprit 4: Kinked Spool Paths & "Pig-Tailing"

Sometimes the fraying originates before the thread ever reaches the needle bar.

• Twisted Thread Memory: As thread unspools off a cone, it naturally twists. If the thread tree guide directly above the spool is set too low or misaligned, the loose strand forms small helical loops (pig-tails).

• The Snag: When one of these twisted loops hits the upper tension discs or thread tubes, it cannot pass smoothly through. It jams momentarily, creating an instant spike in tension that shreds the thread filaments across the disc edges.

• The Studio Fix: Ensure thread tree eyelets sit at least 2.5 times the height of the cone directly above the spool, and slip an elastic thread net over slick polyester cones to tame loose unraveling.

Studio Diagnostic Ledger

Use this quick-reference checklist whenever thread fraying strikes your workshop:

Field Recovery: How to Fix a Frayed Stitch on Your Favorite Cap

What if you are a cap owner and notice a single loose, frayed filament sticking out from your favorite hat logo?

Do NOT pull it, and do NOT cut it flush with a pair of office scissors. Cutting the fiber at the base will release tension on the adjacent satin loops, causing the entire column to unravel over the next few washes.

The Studio 2-Step Rescue:

1. The Inverted Needle Tuck: Take a standard fine household sewing needle. Insert the dull eye-end directly down through the hole where the frayed strand originates, catching the loop, and pull the stray fiber into the inside of the crown. The front panel instantly looks clean, while the structural anchor remains intact.

2. The Micro-Heat Seal (For Polyester Thread Only): Because 100% trilobal polyester is a thermoplastic polymer, you can seal the frayed fiber end on the interior of the crown using the edge of a clean metal spoon heated under hot tap water, or a precision craft heat pen. Lightly tapping the melted fiber end welds it to the backing, locking the stitch permanently in place.
