When shrinking a logo to fit the curved front panel of a baseball cap, typography is usually the first casualty.

In digital design, scalability feels limitless. You highlight a line of text in Illustrator, type 8 pt, and zoom in to 600%. On screen, every serif, dot on an "i", and micro-tagline looks razor-sharp.

Then the file hits the embroidery workshop floor, and the machine operator flags it immediately.

The hard truth of headwear manufacturing is that thread has physical mass, and commercial needles punch real physical holes. You cannot simply scale down text indefinitely. Understanding the minimum text size for hat embroidery is the difference between a pristine, legible cap and an unreadable blob of tangled polyester.

Here is the exact millimeter breakdown of what industrial needles can achieve on curved canvas, why letters fail below certain thresholds, and how to format small text so it stays crisp for years.

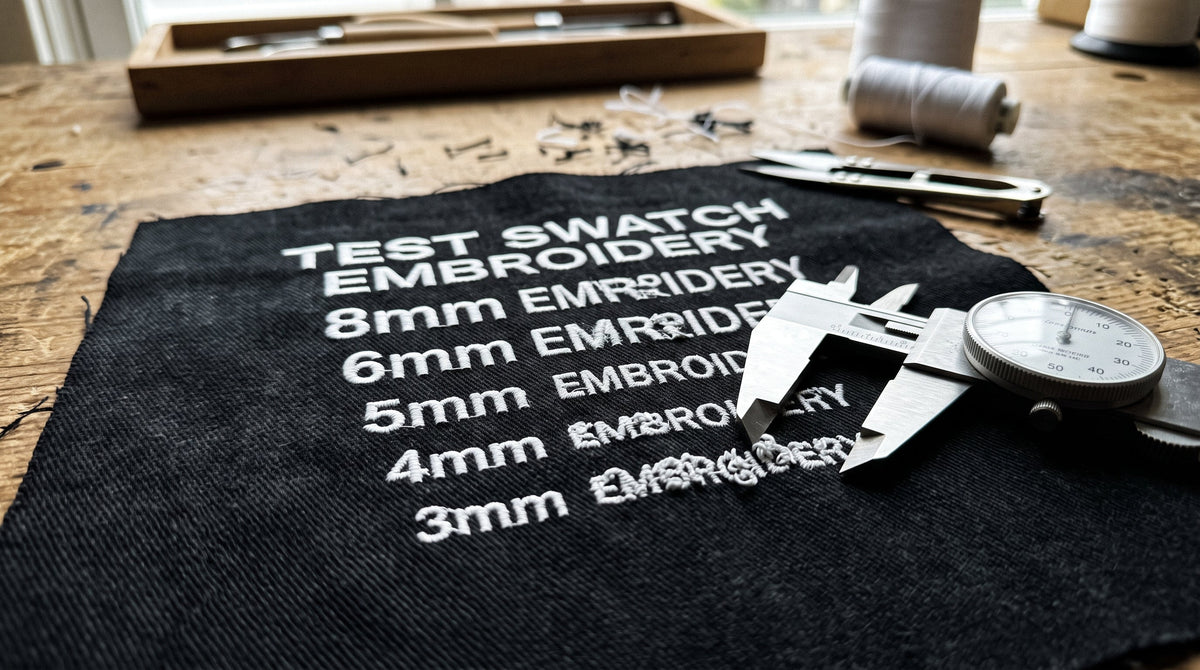

THE EMBROIDERY SCALE OF LEGIBILITY
=============================================================================
Height:   [ < 4.0 mm ]      [ 5.0 mm - 6.0 mm ]      [ 7.0 mm - 12.0 mm ]
Format:   Illegible blob    Running / Bean stitch    Clean Satin Column
Status:   STRIKE / REJECT   Crisp micro-subtext      The Universal Sweet Spot
=============================================================================

1. The Physical Minimums: Satin vs. Running Stitch

Commercial cap embroidery runs primarily on 40-weight polyester thread driven by a size 75/11 needle.

A standard 40-weight thread strand has an average diameter of approximately 0.25mm. When that thread loops back and forth across a satin column, it requires a certain minimum track width to turn around cleanly without cutting into itself.

• Flat Satin Stitch (The Gold Standard):

  • Absolute Minimum Height: 5.0 mm (approx. 0.20 inches).

  • Optimal Height: 6.5 mm to 10.0 mm.

  • Below 5mm, the needle penetrations on the left and right sides of each letter stem overlap. Instead of a distinct vertical stroke, the needle creates a single jagged hole, packing thread until the fabric tears.

• Running Stitch (Single-Line Walk):

  • Absolute Minimum Height: 3.5 mm to 4.0 mm (approx. 0.15 inches).

  • When text is too small for a back-and-forth satin column, digitizers switch to a single or triple-pass run stitch (like a technical architect’s blueprint pen). It lacks the bold shine of satin, but it preserves letter legibility at miniature scales.

• 3D Puff Embroidery:

  • Absolute Minimum Height: 19.0 mm (0.75 inches).

  • Foam cores cannot physically taper down to miniature letters. Small text must always remain flat.

2. Anatomy of a Letter: The Three Failure Points

Total letter height is only half the equation. What causes small embroidery to fail is the internal anatomy of the typeface:

    SERIF FRACTURE               CLOSED COUNTER               KERNING MERGE
       \     /                       ┌───┐                         │   │
      ──[ S ]──                     │ e │ <-- Fills into          │A│B│ <-- Thread
    Tiny decorative                └───┘     a solid knot         bridges across
    tips snap off                                                 tight gaps

1. Closed Counters (The Eyelet Collapse):

   Look closely at lowercase letters like e, a, o, p, and b. The empty space inside the loop is called the counter. If that counter has an internal clearance smaller than 1.5mm, the machine needle penetrations from the surrounding stroke will pull thread straight across the void. Your lowercase e instantly becomes a solid, illegible knot.

2. Serif Fractures:

   Typefaces with fine ornamental feet (like Garamond or Didot) have serifs that taper down to fractions of a millimeter. Thread cannot taper to a microscopic point. The machine packs multiple needle drops into the foot, turning elegant serifs into clunky, irregular clubbed toes.

3. The Kerning Trap (Letter Spacing):

   At small sizes, standard typography tracking is too tight for cap canvas. Because thread pulls fabric inward along the stitch direction, neighboring letters drift toward each other. Without expanding your letter spacing, characters like R and N will physically fuse together into a single tangled block.

3. The Cap Fabric Variable: Why Twill "Swallows" Text

T-shirts and hoodies feature flat, smooth jersey knits. Baseball caps, however, are made from rugged, diagonal-ribbed cotton twill.

Washed cotton twill has high-relief ridges (wales) running diagonally across the crown. If a letter stroke is only 1.0mm wide, a single needle penetration can land inside the valley between two twill ribs.

When the thread pulls tight, the letter sinks into the fabric groove, effectively hiding parts of the word.

To prevent twill from swallowing miniature typography:

• We digitize a specialized underlay lattice that acts as an invisible floor, elevating the top thread above the fabric ridges.

• We strongly advise choosing clean, geometric sans-serif fonts (such as Helvetica, Futura, or DIN) where strokes maintain uniform thickness throughout.

4. The Studio Formatting Formula for Small Text

If your cap design includes small supporting text—such as coordinates, dates, web domains, or secondary branding—apply this workshop checklist to guarantee a clean stitch-out:

The Final Rule of Thumb

If you hold a printed sample of your logo 18 inches away and have to squint to read the secondary text, an industrial embroidery needle will not solve that problem with thread.

Respect the 5mm baseline for satin lettering, give your characters room to breathe, and let the bold elements command the crown while small subtext remains crisp, functional, and effortless to read.
